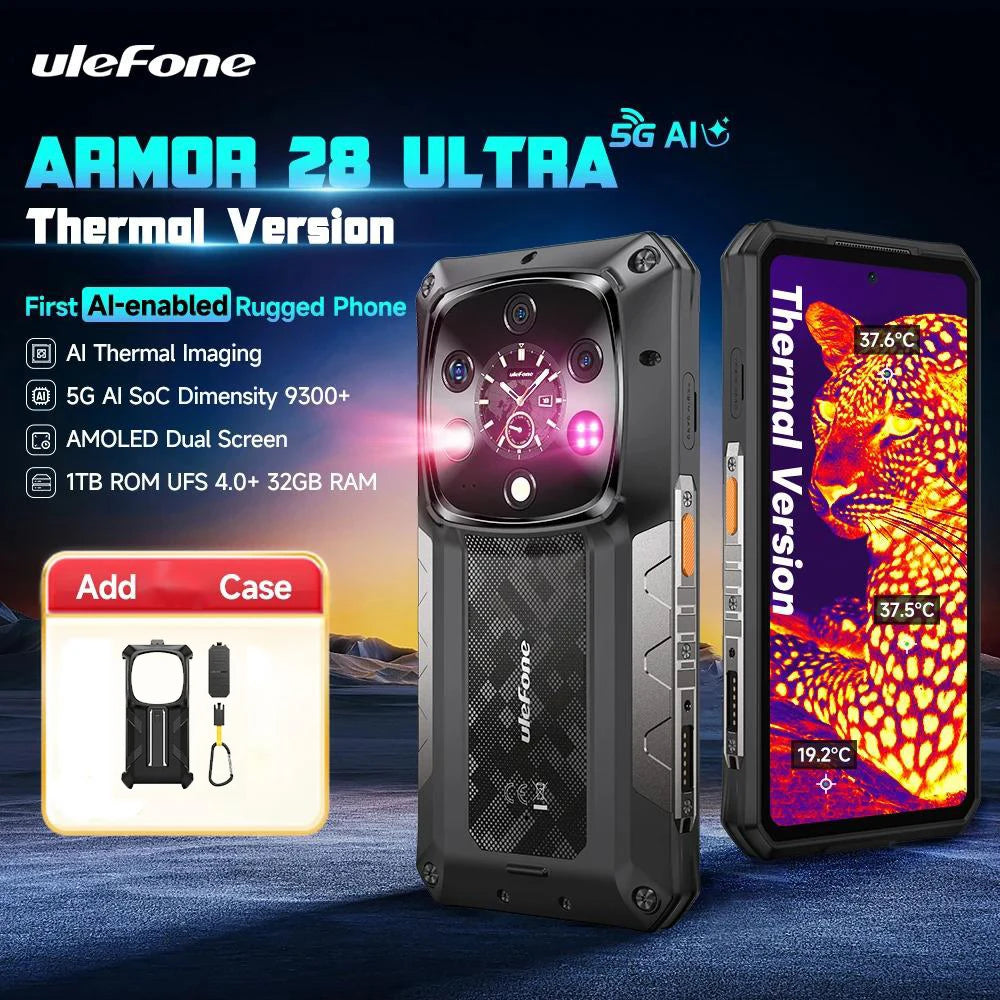

Armor 28 Ultra 5G AI Thermal
Armor 28 Ultra 5G AI Thermal
Regular price
$1,199.99 USD
Regular price
$1,071.42 USD
Sale price
$1,199.99 USD
Quantity
Couldn't load pickup availability
Share
Ulefone Armor 28 Ultra Thermal Version Specifications |
||
Physical Characteristics |
||
Color |
Epic Black |
|
Material |
PC + Aluminium |
|
USB |
Type-C, USB 3.2 Gen 2; supports screen mirroring to DP1.4 displays. |
|
Headphone Jack |
3.5mm Headphone Jack |
|
Expansion Connector |
uSmart Expansion Connector 2.0, suppors uSmart series accessories, allows simultaneous charging via the Type-C port while the uSmart Connector is in use. |
|
Card Slots |
3, 1x Nano-SIM + 1x Nano-SIM + 1x microSD |
|
Keys |
Right: Power button (Fingerprint)+Volume button+Camera Key, Left: Custom Key |
|
Size & Weight |
||
Product Size |
174.15 x 83.6 x 19.4 mm-23mm |
|
Product Weight |
450g / 15.87 ounces |
|
Package Size |
108 x 198 x 86 mm / 4.25 x 7.8 x 3.39 inches |
|
|
Product size and weight may vary by configuration, manufacturing process and measurements. All specifications are subject to the actual product. |
||
Ruggedness |
||
Certification |
IP68/IP69K/MIL-STD-810H |
|
Splash, Water, and Dust Resistant |
Maximum depth of 1.5 meters up to 30 minutes |
|
Drop resistance |
Up to 1.5m tall |
|
Working Temperature |
-20℃ - 55 ℃ (-4℉ - 131℉) |
|

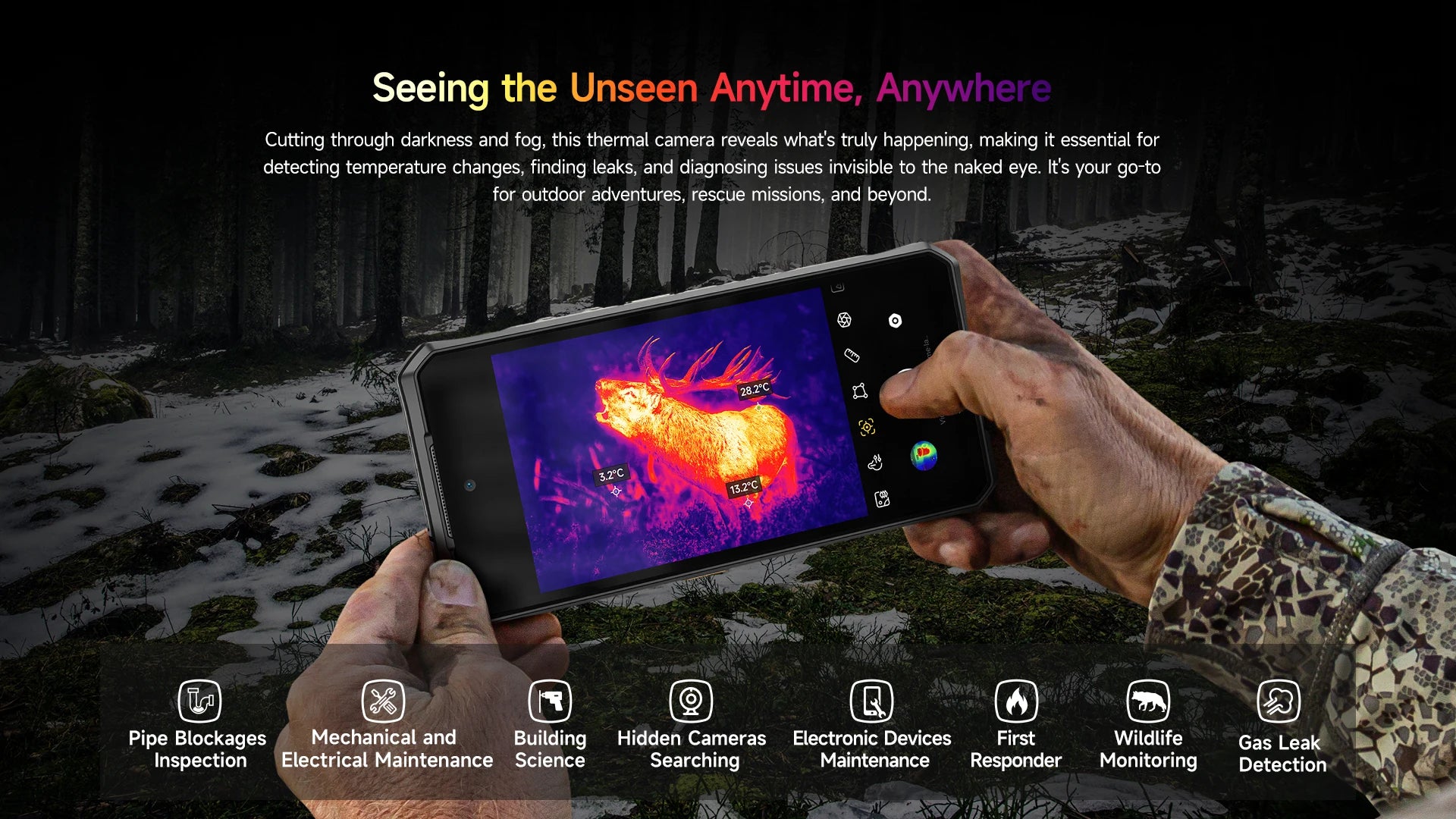

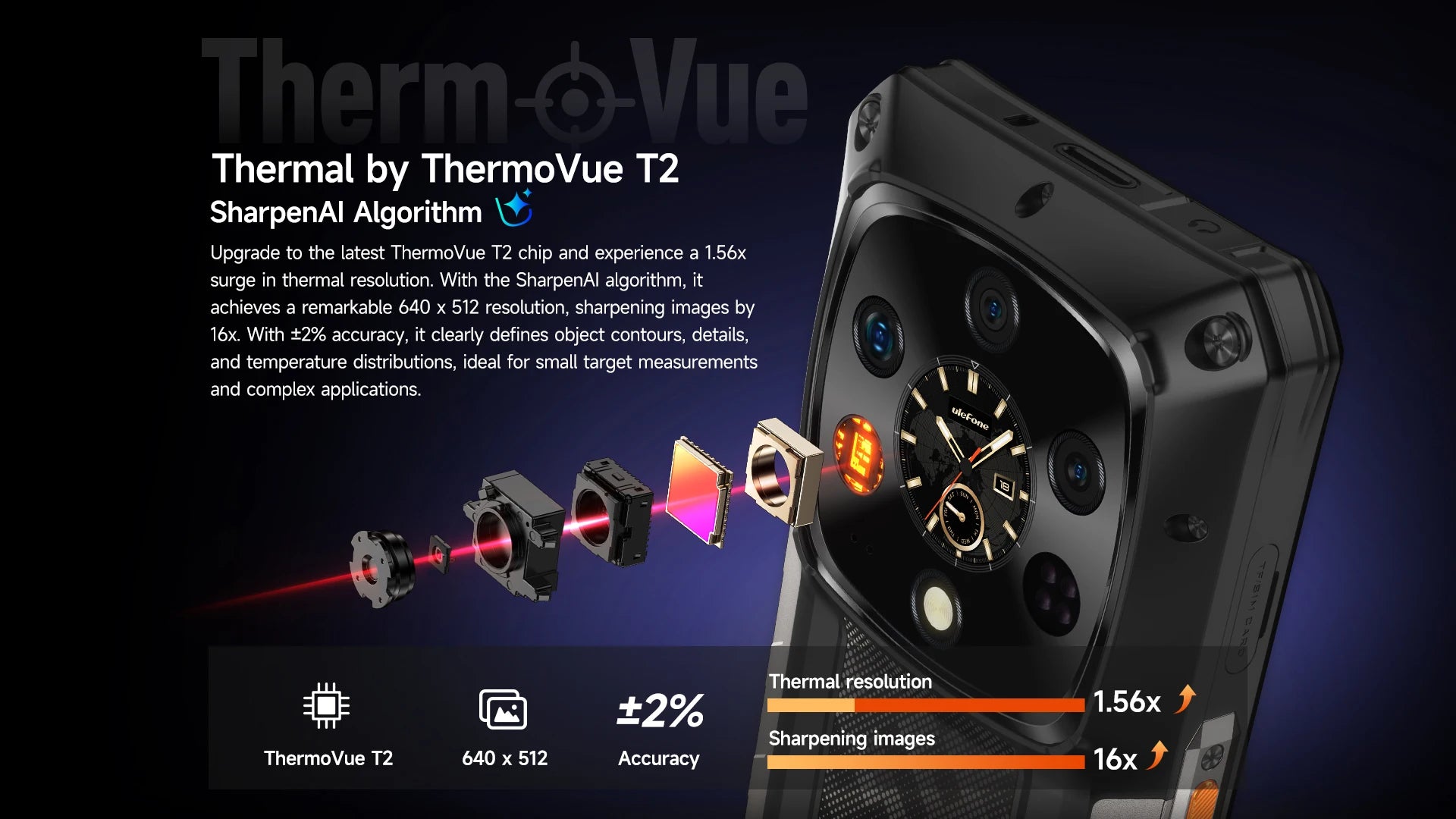

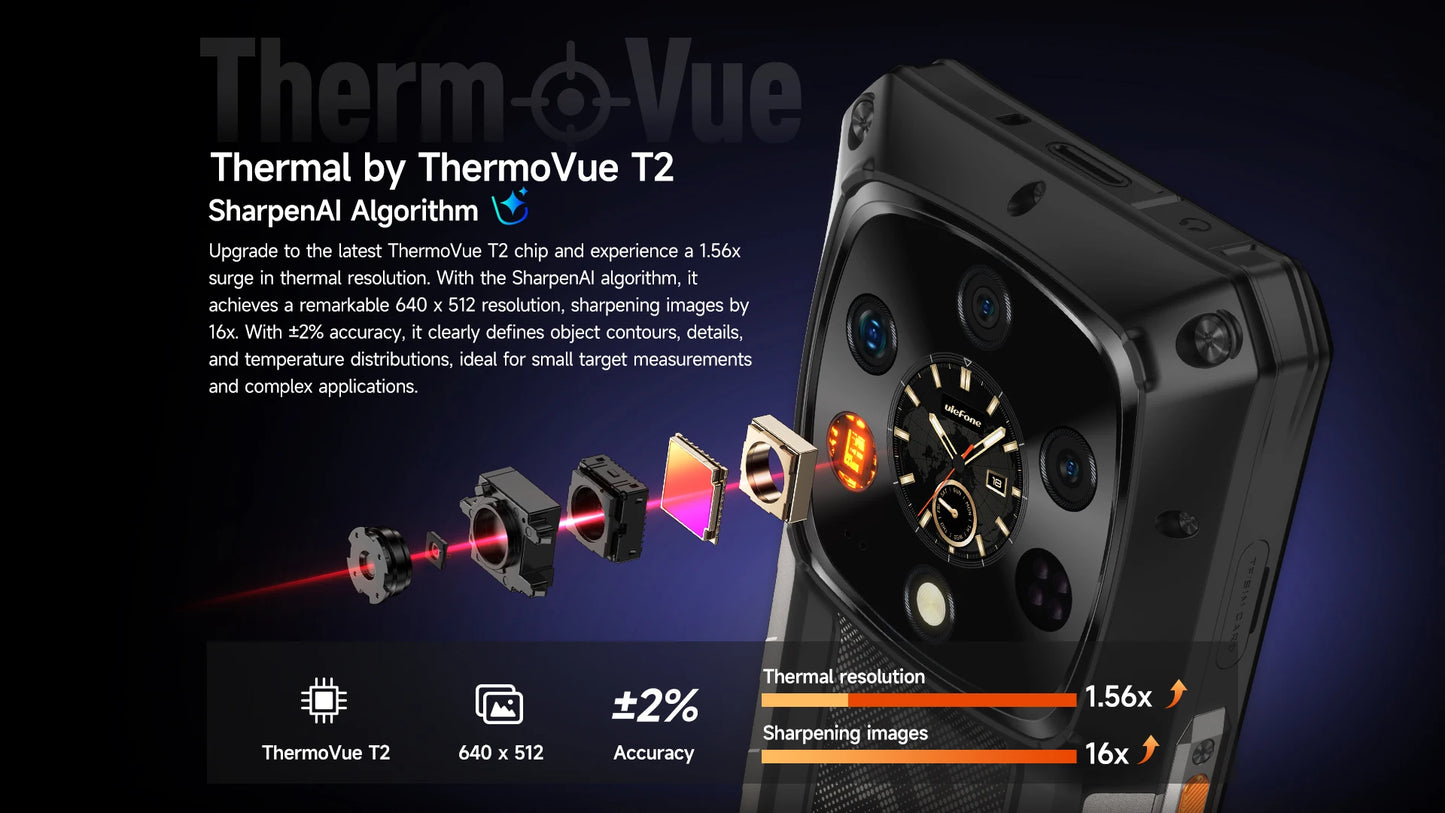

AI Thermal Imaging |
||
Thermal Sensor |
ThermoVue T2 |
|
Infrared ISP |
Independent Infrared ISP |
|
App |
ThermoVue Pro |
|
Resolution |
640 x 512 |
|
Frame Rate |
25Hz |
|
Pixel Pitch |
12μm |
|
Thermal Sensitivity (NETD) |
<40mk |
|
Temperature Measurement |
-20°C to 550°C |
|
Accuracy |
±2℃ |
|
Main Display |
|
|
Screen Size |
6.67-inch |
|
Screen Resolution |
1080 x 2400 FHD+ |
|
Display Technology |
AMOLED |
|
AOD (always-on display) Mode |
Support |
|
Aspect Ratio |
20:9 |
|
PPI |
395 |
|
Brightness |
2200nits(Peak Brightness), 900nits (HBN); 500nits (Typ) |
|
Color Depth |
10-bit |
|
Refresh Rate |
120Hz |
|
Screen-to-Body Ratio |
92% |
|
Multi-touch |
10 |
|

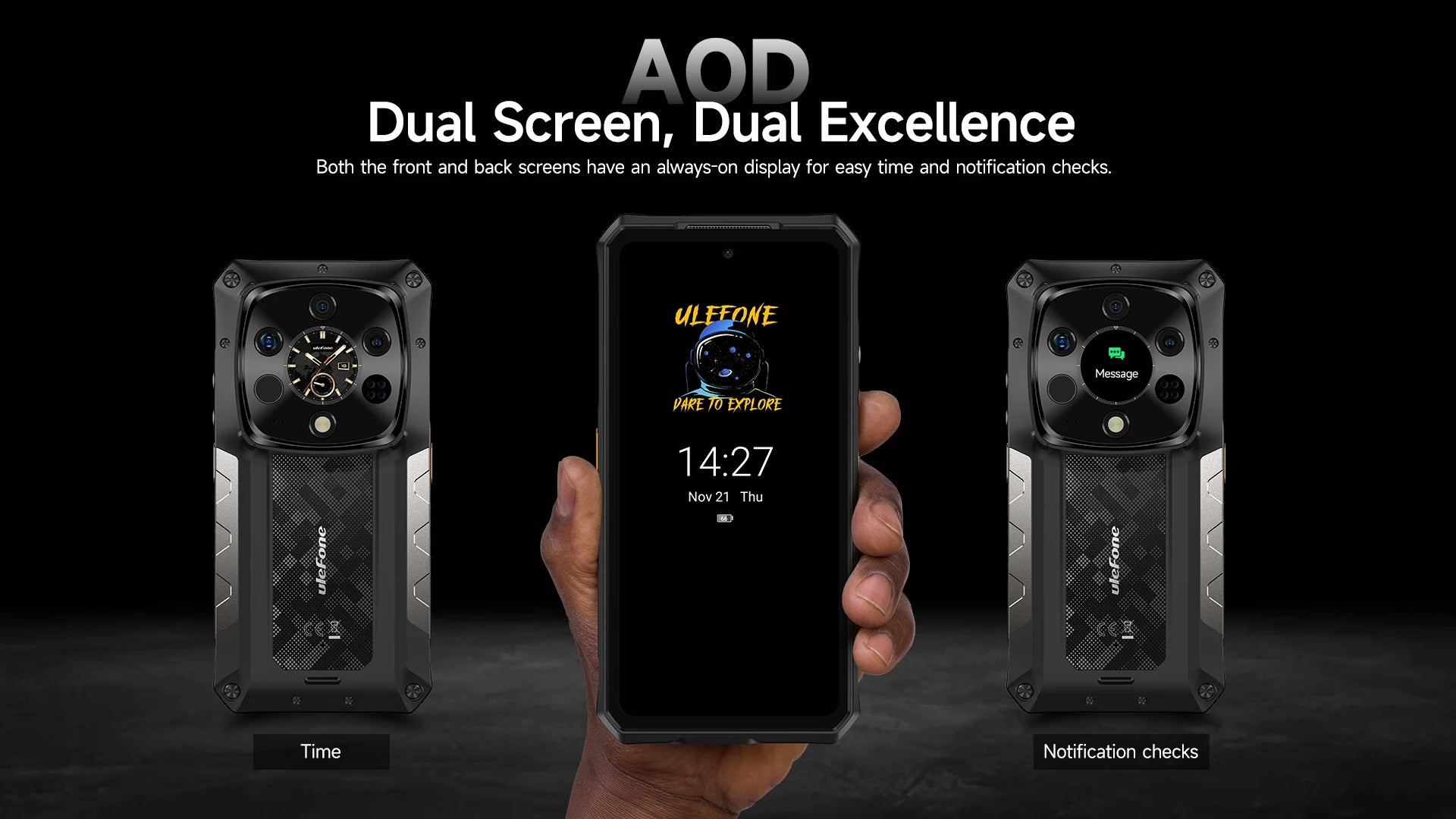

Sub Display |
||
Screen Size |
1.04-inch |
|
Screen Resolution |
340 x 340 HD+ |
|
Display Technology |
AMOLED |
|
AOD (always-on display) Mode |
Support |
|
Brightness |
Max 600 nits |
|
Refresh Rate |
60Hz |
|
Multi-touch |
Single |
|
UI/Features |
Interface Display |
Default features include clock, compass, music, camera, and calendar.
|
Watch Face |
Customization of watch face wallpapers is available through the settings menu or by double-tapping on the sub-screen watch face, then swiping left/right and long-pressing to select a watch face wallpaper.
|
|
Music Playback |
Supports selection of different music apps.
|
|
Photo Capture |
Provides quick access to photo capture, switching between front and rear cameras.
|
|
Notifications |
By swiping up on the sub-screen, users can quickly view notifications and messages. |
|
Status |
By swiping down on the sub-screen, users can quickly check the battery status. |
|
Personal Signature |
Displays a personal signature upon screen-on, which can be customized in the sub-screen settings menu. |
|
Processor |
||
CPU Model |
MediaTek Dimensity 9300+ |
|
Main frequency |
3.4GHz |
|
Production Process |
4nm |
|
CPU Core |
8, All-big-core, 1x Arm Cortex-X4 up to 3.4GHz, 3x Arm Cortex-X4 up to 2.85GHz, 4x Arm Cortex-A720 up to 2.0GHz |
|
GPU |
Immortalis-G720, 1.3GHz |
|
AI Processing Unit |
MediaTek NPU 790 |
|
RAM & Storage |
||
RAM |
16GB LPDDR5X + 16GB Dynamic RAM (The Dynamic RAM can be extended in Settings if needed. ) |
|
Storage |
1TB UFS4.0 |
|
Max. Expansion Supported |
2TB |
|

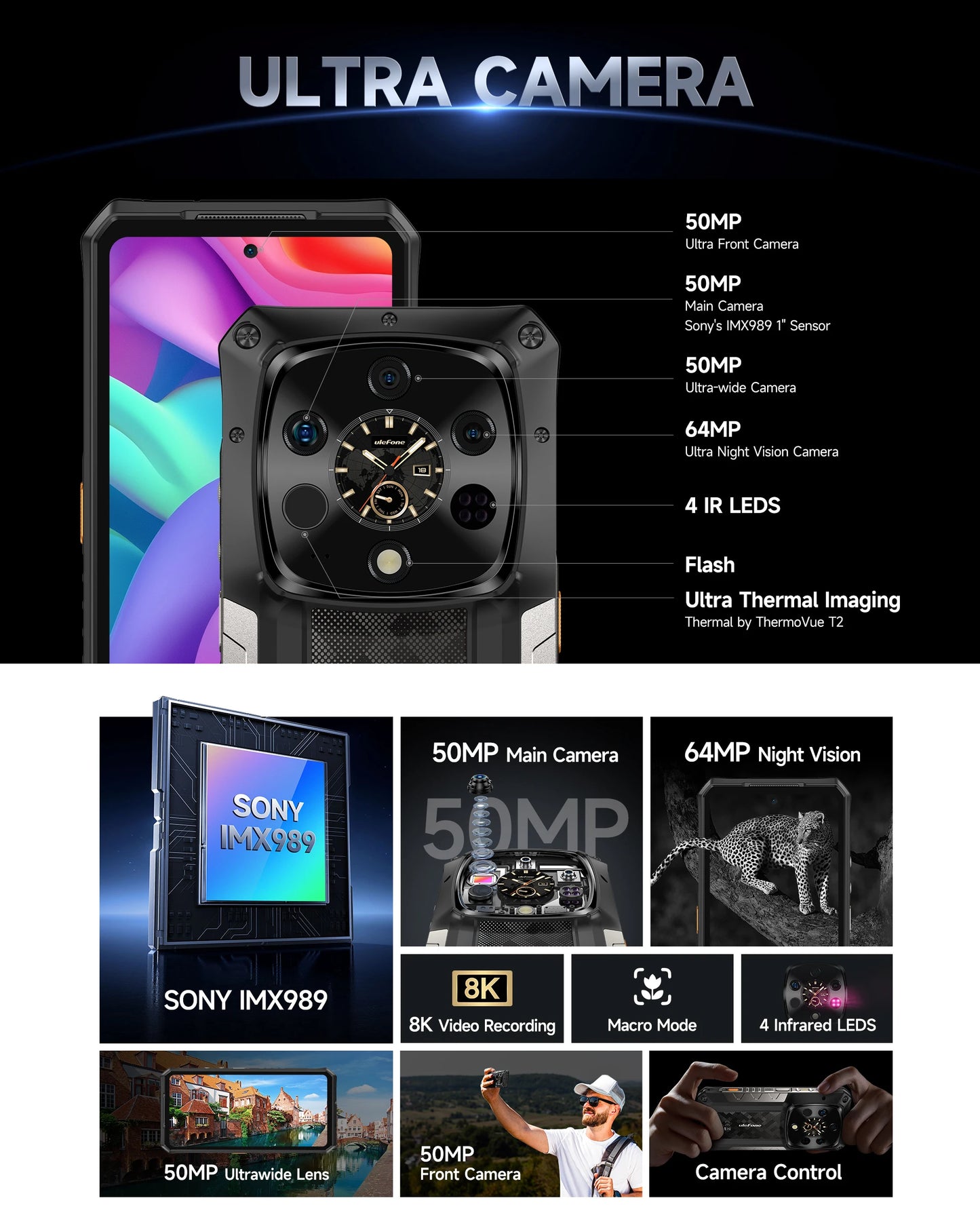

Rear Camera |
||
Rear Camera Numbers |
3 |
|
Main Rear Camera |
Pixel: 50MP |
|
|
|
Details: Sony ®IMX989 CMOS sensor, 1.6μm, 8 piece lens, FOV 85.1°, ƒ/1.9 large aperture |
|
Night Vision Camera |
Pixel: 64MP |
|
|
|
Details: OV64B CMOS sensor, FOV 79.4°, ƒ/1.79 large aperture |
|
Ultra-wide Lens |
Pixel: 50MP |
|
|
|
Details: Samsung ®JN1 CMOS sensor, FOV 117.3°, ƒ/2.2 large aperture |
|
Flash |
1 |
|
Video Recording Resolution |
8K(30fps), 4K(60fps/30fps), FHD(60fps/30fps), HD(60fps/30fps)) |
|
Special Features |
Normal mode, Night vision mode,Beauty mode, Wide angle mode, 50MP mode, Night mode, Gif, Portrait, Pro mode, Panorama, Slow motion,Mono, QR code |
|
Front Camera |
||
Pixel |
50MP |
|
Details |
Details: Samsung® JN1 CMOS sensor, 0.64μm, 5 piece lens, FOV 80.4°, ƒ/2.45 large aperture |
|
Video Recording Resolution |
FHD(30fps), HD(30fps), VGA(30fps), CIF(30fps) |
|
Special Features |
Normal mode, Beauty mode , 50MP mode, Gif, Portrait, Mono |
|
Battery & Charging |
||
Capacity |
10600mAh (Equivalent to 5300mAh, 7.74V) |
|
Watt Hours Per Battery |
41.022 Wh |
|
Battery Type |
Lithium-ion polymer battery |
|
Charging Details |
120W, 20V/6A |
|
Wireless Charge |
50W |
|
Reverse Charge |
Support, 10W |
|
Standby Time |
576 Hours |
|
Talk Time |
58 Hours |
|
Network & Connectivity |
||
Card Type |
Nano+Nano+microSD |
|
Cellular |
5G/4G/3G/2G |
|
Band Details |
5G: Sub6: N1/2/3/5/7/8/20/25/28/38/40/41/66/71/77/78/79 |
|
|
|
4G: FDD-LTE: B1/2/3/4/5/7/8/12/13/17/18/19/20/25/26/28A/28B/32/66/71
|
|
|
|
3G: WCDMA: B1/2/4/5/6/8/19 |
|
|
|
2G: GSM: B2/3/5/8 CDMA: BC0/BC1/BC10 |
|
Standby Mode |
Dual sim dual standby |
|
VoNR |
Support |
|
VoLTE |
Support |
|
WiFi |
WiFi 7 (2.4GHz/5GHz/6GHz), 802.11 be/ax/ac/a/b/g/n |
|
Bluetooth Version |
BT5.4 |
|
Navigation |
GPS/GLONASS/Beidou/Galileo/QZSS/NavlC GPS |
|
Audio |
||
Speaker Numbers |
1 |
|
Speaker Model |
1326 SPK BOX |
|
Speaker Power |
2W max. |
|
Smart PA |
AW88394 |
|
Security |
||
Fingerprint ID |
Support |
|
Face Unlock |
Support |
|
System & Features |
||
Android Version |
Android 14 (Pre-installed with Android 14, you can update to Android 15 in Q2 2025 via OTA. Timing to be announced.) |
|
Pre-installed APP |
Google Assistant, Calculator, Google Calendar, Camera, Children Space, Chrome, Clock, Contacts, Google Drive, Easy Launcher, Files by Google, Find Device, FM Radio, Game Mode, Gmail, Google, Google TV, Keep Notes, Google Maps, Google Meet, Google Messages, Netflix, Phone, Photos, Google Play Store, QRCode Scan, Remote Control, Safety, Service Center, Settings, SIM ToolKit, Sound Recorder, System Manager, ThermoVue Pro, Toolbag, Translate, Ulefone AI Toolkit, YouTube, YT Music |
|
Language |
Indonesian, Malay, Catalan, Czech, Danish, German, Estonian, English, Spanish, Filipino, French, Croatian, Italian, Latvian, Lithuanian, Hungarian, Dutch, Norwegian, Polish, Portuguese, Romanian, Slovak, Finnish, Swedish, Vietnamese, Greek, Turkish, Bulgarian, Russian, Serb, Ukrainian, Armenian, Hebrew, Urdu, Arabic, Persian, Hindi, Bengali, Thai, Korean, Burmese, Japanese, Simplified Chinese, Traditional Chinese |
|
Blinking Notification Light |
Support, red/green/blue light |
|
Battery Status Light |
Support |
|
Audio Format Supported |
MID/FLAC/MKA/MP3/M4A/AAC/AMR/OGG/MP2 |
|
Video Format Supported |
MOV/MKV/3GP/MP4 |
|
Image Format Supported |
GIF/JPEG/PNG/BMP |
|
Text Format Supported |
TXT/HTML |
|
FM Radio |
Support,headset-free FM radio |
|
Cell Broadcast |
Support |
|
Sensor |
Proximity Sensor, Gravity sensor, Light Sensor, Acceleration Sensor, Geomagnetic sensor, Gyro sensor, Coulomb counter, Pedometer, Air pressure sensor, Infrared sensor |
|
Special Features |
||
Underwater Camera |
Support |
|
Digital Toolbox |
Height Meter, Compass, Gradienter, Flashlight, Hanging Painting, Magnifier, Alarm bell, Plumb bob, Protractor, Noise Test, Pedometer, Barometer, Funny Sound, Mirror |
|
OTG Function |
Support |
|
NFC |
Support |
|
IR Blaster |
Support |
|
Others |
||
Packing List |
1 x Phone
|
|
Product Certification |
CE, FCC, IP68, IP69K, MIL-STD-810H, WEEE, ROHS.TAC, UN38.3,MSDS, IEC62133 |
|
